Radium Engineering Injector Seats for Toyota Top Feed Fuel Rails

Click here to download installation instructions (PDF)

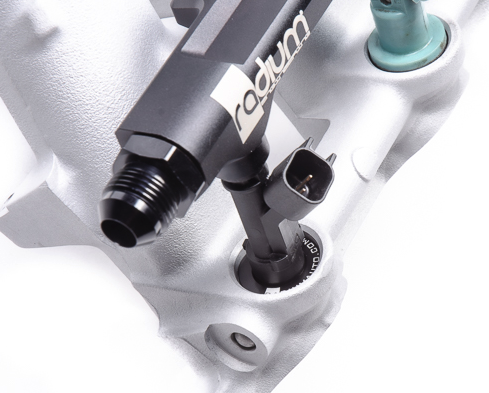

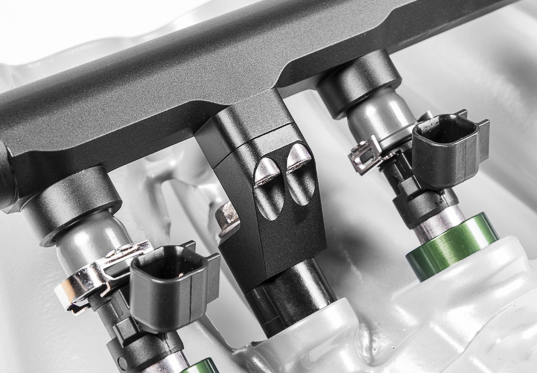

These are the same machined aluminum injector seats used in many Radium Engineering fuel rails. They are required when converting the OEM fuel injector to aftermarket fuel injectors. They simply press-fit into the intake manifold injector ports with no modifications required. Using the included FKM O-ring, they seal into the machined injector counterbore preventing vacuum (or boost) leaks. The injector seat bores are designed to be used with a common 14mm lower injector O-ring.

NOTE: Because they are compatible with different cylinder engines, the injector seats are SOLD INDIVIDUALLY (not a set). Change quantity accordingly.

Features

-CNC machined 6061 aluminum
-Laser etched logo
-FKM O-rings

20-0216 TOYOTA INJECTOR SEAT

20-0216 is used to convert side feed injectors to top feed injectors.

COMPATIBILITY

2JZ-GTE
2JZ-GTE VVT-i
1JZ-GTE (Non VVT-i)

NOTE: There are other engines that are compatible but have never been verified.

20-0516 TOYOTA AIR ASSIST INJECTOR SEAT

20-0516 is used to convert Toyota air-assist injectors to standard top feed injectors.

The Toyota air assist injector seats are anodized black, as shown below.

COMPATIBILITY

2JZ-GE VVT-i
1UZ-FE VVT-i
3UZ-FE

NOTE: There are other engines that are compatible but have never been verified.
