Product Description
Radium Engineering PCV Baffle Plate - Ford Ecoboost, Duratec, Mazda MZR
Click here to download installation instructions (PDF)
The Radium Engineering PCV Baffle Plate mounts to the engine block and replaces the factory plastic PCV plate and valve. Compared to the OEM unit, the CNC machined aluminum Radium Engineering PCV plate features an extra baffle to prevent oil sludge from entering the intake system without restricting air flow. Furthermore, there are two 10AN ORB ports machined above both aluminum baffles. 10AN ORB Adapter Fittings can be found HERE. NOTE: The OEM configuration kit (20-0327-01) is not compatible with all vehicles.
20-0327-01 Ecoboost PCV Baffle Plate, With Fittings
This kit includes the baffle plate and associated fittings for a plug and play installation. It is compatible with the following vehicles only:
2013+ Ford Focus ST EcoBoost
2016+ Ford Focus RS EcoBoost
2015+ Ford Mustang EcoBoost
NOT COMPATIBLE WITH FORD RANGER
This kit integrates perfectly with the OEM PCV tubing or with the Radium catch can kits for EcoBoost engines. Because the OEM Ford PCV valve leaks at all boost levels, this kit includes Radium's own upgraded 10AN ORB PCV Valve which prevents boost from leaking into the crankcase. No permanent vehicle modifications are required. Exact contents of 20-0327-01 are shown in the picture below.
INCLUDED IN 20-0327-01
-Billet Aluminum PCV Plate with Baffles
-Aluminum 10AN ORB PCV Valve
-Aluminum 10AN ORB Plug
-Rubber 3/8" PCV Hose
-Spring Hose Clamps x2
-EFI-style Hose Clamp x1
IMPORTANT: If using with the Radium Engineering Focus RS/ST catch can kits, select the this option from above. This will install perfectly with the PCV catch can kit and no other parts are needed. A check valve is not required.
20-0327-02 PCV Baffle Plate Only, No Fittings
This part includes ONLY the Radium PCV plate and associated baffles and is intended for custom installations. It requires additional parts for complete installation. Custom plumbing for the specific vehicle will need to be configured by the installer. There are two 10AN ORB female ports allowing connection of breathers, catch cans, oil return lines, etc. for highly modified vehicles. 10AN ORB fittings are sold separately HERE.
The 20-0327-02 baffle plate will bolt-onto a wide range of the following Ford and Mazda engines, but determining what fittings work best is up to the installer:
2013+ Ford Focus ST EcoBoost
2016+ Ford Focus RS EcoBoost
2015+ Ford Mustang EcoBoost
2013+ Ford Fusion EcoBoost
05-12 Ford Focus Duratec
02-08 Ford Fiesta Duratec
2006+ Ford Fusion Duratec
07-13 Mazdaspeed 3 MZR
06-07 Mazdaspeed 6 MZR
05-15 Mazda MX-5 MZR
NOT COMPATIBLE WITH FORD RANGER
Shown below is the plate installed on a Ford Focus RS EcoBoost engine.

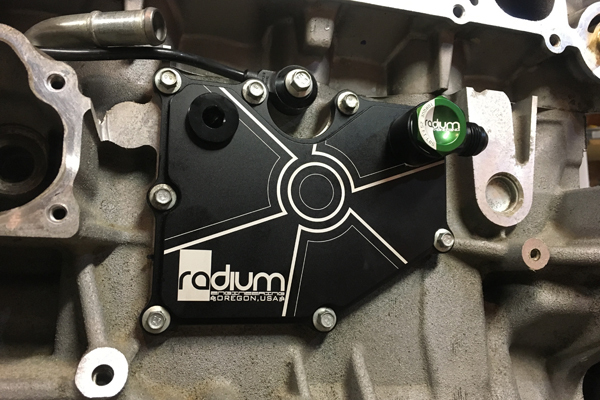

The Ford Fusion Duratec engine is shown below.

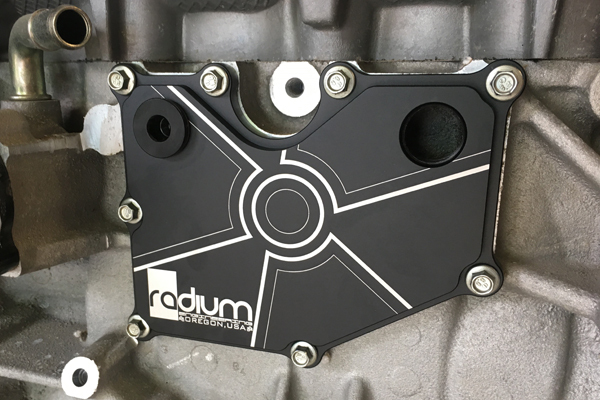

The Mazda MX-5 MZR engine is shown below.
