Radium Engineering Fuel Rail, Nissan RB26DETT

Click here to download installation instructions (PDF)

PORTS AND FITTINGS

This fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1/8NPT port.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
1/8 NPT Adapter Fittings can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

20-0217 FUEL RAIL, NISSAN RB26DETT

This 89-02 Nissan Skyline GT-R fuel rail is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish.

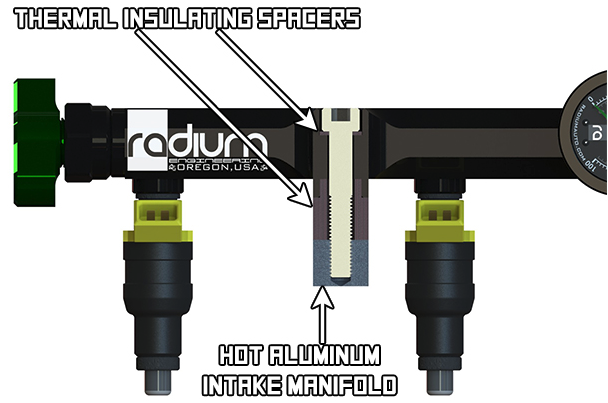

For thermal insulation, press-fit machined spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts, as shown.

The rail is compatible with all fuel types including popular alcohol mixtures such as E85.

As shown below, the front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.

If the OEM fuel pressure regulator will be reused, select the 20-0303 FPR Adapter HERE.

The gauge port has 1/8" NPT female threads commonly used for a fuel pressure gauge/sensor or it can simply be plugged. For 1/8" NPT fittings, click HERE.

For a Radium fuel pressure gauge, click HERE.

INCLUDES

-Black Anodized Aluminum Fuel Rail
-Thermal Insulating Spacers (x2)
-Thermal Insulating Washers (x2)
-Stainless Steel Mounting Bolts (x2)
-FKM O-rings for OEM Injectors (x6)

NOTE: This fuel rail does NOT come standard with fittings (see plumbing kit below).

FUEL INJECTOR COMPATIBILITY

This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

20-0217-PK FUEL RAIL PLUMBING KIT, NISSAN RB

The plumbing kit permits a complete bolt-on affair for the fuel rail. Fuel hose is provided to connect the fuel filter to the rear of the fuel rail via a 6AN hose end and adapter fitting. A FPR adapter is provided to mount the OEM fuel pressure regulator to the front fuel rail port. Fuel hose is included to connect the FPR to the hard line on the frame rail. Stainless steel EFI clamps are included for securing all hose barbs. Plugs are provided for both the center port and the gauge port.
