Product Description
Radium Engineering Fuel Rail Mitsubishi EVO X
Click here to download installation instructions (PDF)
PORTS AND FITTINGS
All three fuel rail ports are tapped for 8AN ORB.
8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements.. The rail is CNC machined from solid 6061 aluminum and bright-dip anodized for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

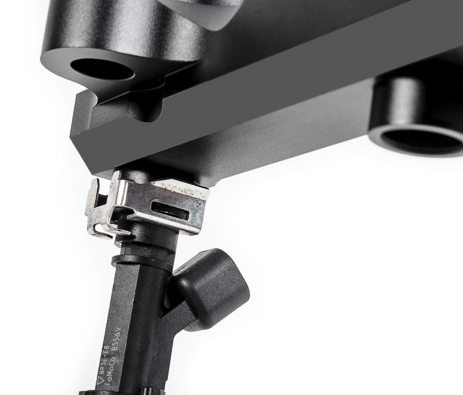

All 4 fuel injector bores feature integrated machining for reusing the OEM injector clips, as shown below.
Fuel Injector Compatibility
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.
Configurations
20-0112-12 Fuel Rail, EVO X

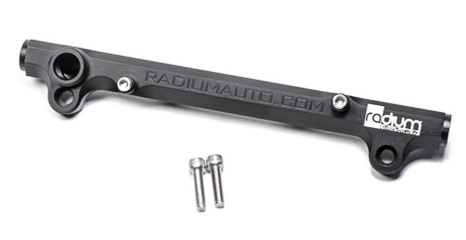

This basic kit includes only the items shown in the picture below. Replacement stainless steel fuel rail bolts and FPR line bolts are included. All fittings must be purchased separately.
20-0112-PK Fuel Rail Plumbing Kit, EVO X

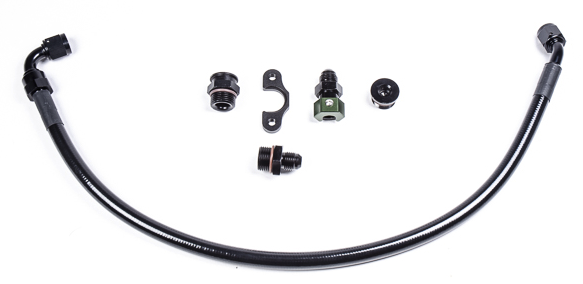

This option includes everything shown in the picture below and allows easy hookup to the factory feed line and re-uses the factory fuel pressure regulator.
-1x 20-0290 5/16in SAE to 6AN Male fitting to adapt the incoming fuel line to 6AN male near the firewall.
-1x Pre-fabricated 24" long 6AN PTFE hose with 45deg and 90deg swivel ends is included to replace the OEM fuel line.
-1x 14-0151 8AN ORB to 6AN Male Fitting to adapt the 6AN hose to fuel rail inlet port.
-1x 20-0301 FPR Adapter is included for the outlet port permitting the reuse of the OEM pressure regulator.
-1x 14-0150 8AN ORB Plug is included for the top port.
