Product Description
Click here to download installation instructions (PDF)
PORTS AND FITTINGS
The fuel rail ports are tapped for 8AN ORB.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
This Radium Engineering secondary fuel rail is for aftermarket 6-port intake manifolds that are produced for the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

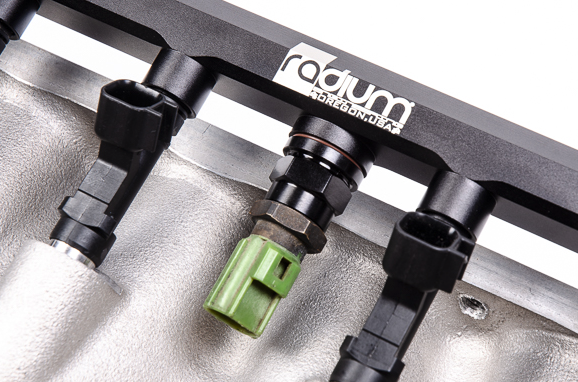

The extra center port (shown above) allows additional fuel system accessories such as the OEM fuel temperature sensor (shown below using 14-0421), a pressure transducer, Radium fuel pulse damper, etc.
Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.
FUEL INJECTOR COMPATIBILITY

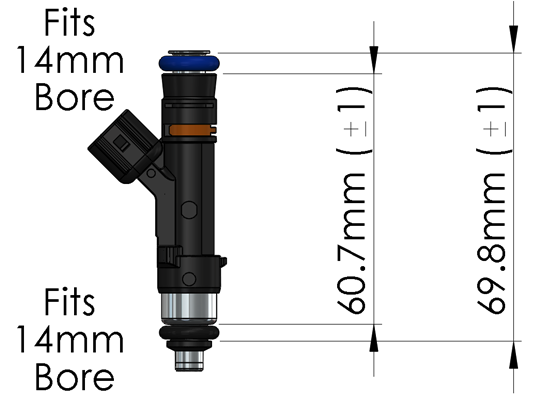

Below are some of the many fuel injectors that are a direct fitment with this fuel rail:
Injector Dynamics ID850-60-14-14
Injector Dynamics ID1050x-60-14-14
Injector Dynamics ID1300-60-14-14
Injector Dynamics ID1700-60-14-14
Injector Dynamics ID2000-60-14-14
Evolved Injection DPI550-60-14-14
Evolved Injection DPI650-60-14-14
Evolved Injection DPI850-60-14-14
Evolved Injection DPI1000-60-14-14
Evolved Injection DPI1200-60-14-14
Evolved Injection DPI1300-60-14-14
Evolved Injection DPI2200-60-14-14
NOTE: Fuel Injectors are NOT included and must be purchased elsewhere.
