Product Description

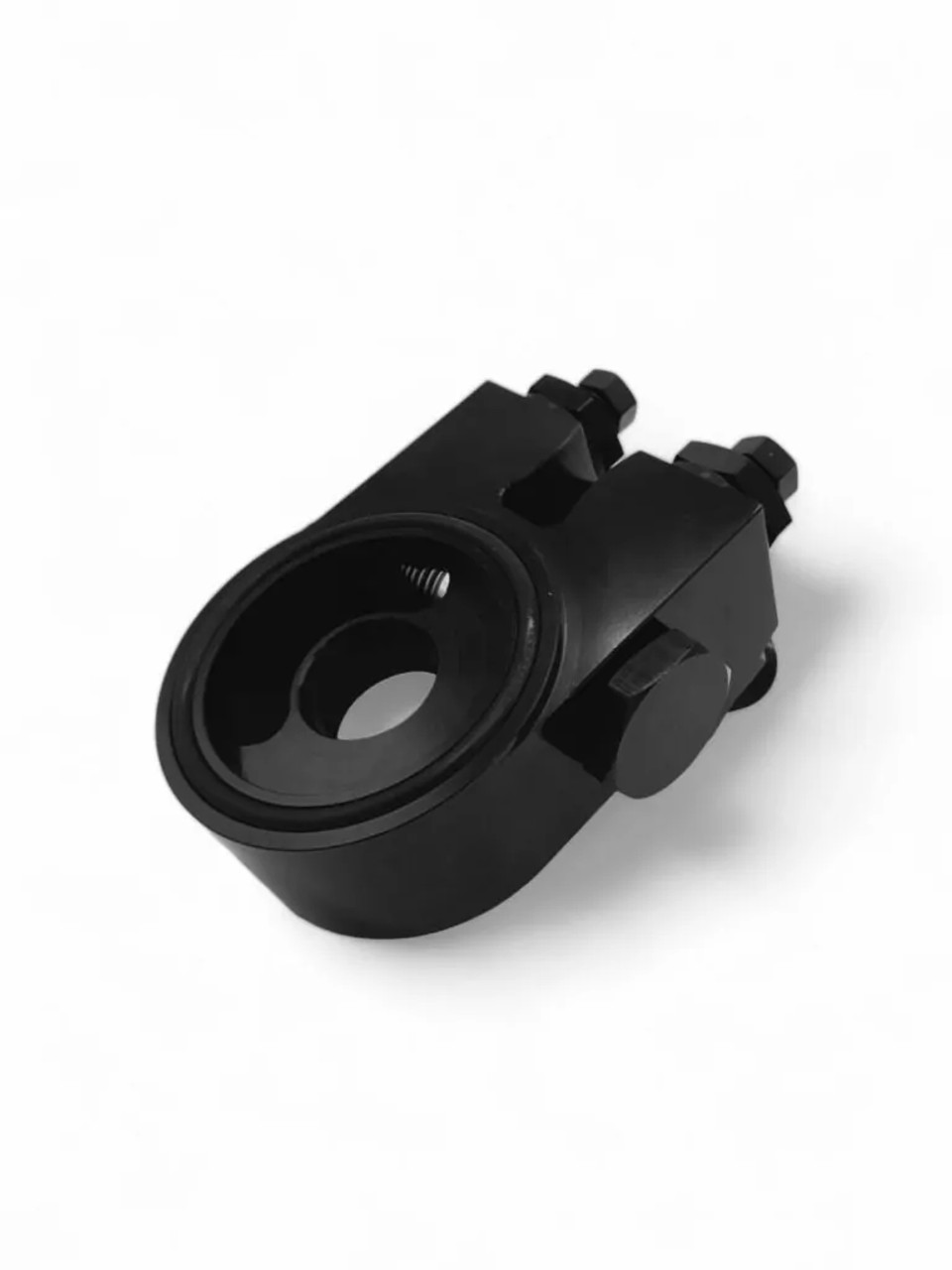

OBP Multi Angle Sandwich Plate for Oil Coolers (Thermostat)
The perfect solution for allowing oil to be taken from the oil filter head to the Oil Cooler comes the CNC Machined Aluminium obp Oil Cooler Sandwich Plates.
The multi angle thermostatic design allows the oil cooler hose to run either straight out the sandwich plate or at a 45deg angle. With this, it also allows you to use the other ports for sensors or other connectors.
The Multi Angle Sandwich block in operated by a built in thermostat allowing your oil to be running at optimum temperatures. Once the engine oil reaches a temperature of 82°C, the valve opens which allows the oil to flow to the oil cooler, thus giving you full control over the oil temperature.
The sandwich plates are fitted with AN10 Male adaptors as standard and also come with 1 M20x1.5 and 3/4″-16 UNF centre bolts.
- CNC Machined from Billet Aluminium
- AN10 Multi Angle Ports
- AN10 Blanking Plugs incorporated with 1/8″ NPT Adaptors
- Built in Thermostat of 82°
- M20x1.5 & 3/4-16″ Centre Bolts included
- 65mm OD x 3mm Seal
