Product Description
Radium Engineering High Flow Fuel Filters
Click here to download installation instructions (PDF)
The Radium Engineering universal fuel filter is a perfect match for any application needing high flow and industry-leading filtration. Radium Engineering uses one of the largest filtration elements in the industry. This translates into a long service life and minimum flow loss, making this filter perfect for low and high-horsepower applications. The filter can be completely disassembled for servicing and replacement elements are available. Stainless steel mesh elements can be cleaned and re-used, while the microglass element is more efficient but must be replaced at the end of it's service life. The filter is designed for both carbureted and EFI fuel pressures.
FILTER CONSTRUCTION
All fuel filters are constructed with a 3-piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance.
The end caps are sealed to the body with FKM O-rings.

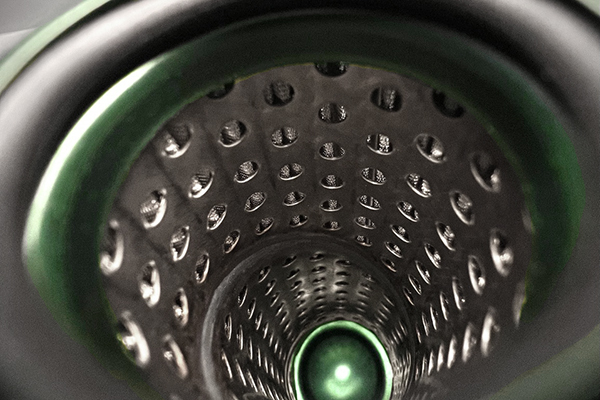

As shown below, the filter elements feature a stainless internal core to prevent collapsing at high flows.
The fuel filters come preassembled with the chosen filter element. These filters are compatible with all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.
DIMENSIONS
The dimensions shown below are the same for all fuel filters.
ELEMENT SELECTION
The Radium Engineering fuel filters are available with different filtration elements. Each option is discussed below.
ABSOLUTE: 99.9% of the particles larger than the specified micron rating will be trapped within the filter.
NOMINAL: The majority of the particles within the specified micron rating will not pass through the filter.
The official BOSCH Fuel Injector filtration specification states:
"Recommended filter quality: nominal rating 5um, minimum 82% capture efficiency according to ISO/TR 19438; dirt particles > 35um are not permissible."
NOMINAL: The majority of the particles within the specified micron rating will not pass through the filter.
The official BOSCH Fuel Injector filtration specification states:
"Recommended filter quality: nominal rating 5um, minimum 82% capture efficiency according to ISO/TR 19438; dirt particles > 35um are not permissible."
The Radium Engineering 18-0025-05 element (from 20-0220-05 filter) has a capture efficiency of 99.9% at 6 micron meeting this standard.
For replacement fuel filter elements, go HERE.
IN-HOUSE TESTING
Fuel Filter Burst Pressure: 750psi
FLOW DATA
The chart belows shows the results of Radium's in-house flow testing of the 20-0220 fuel filters. The pressure drop was found by measuring the inlet and outlet pressures at different flow rates.
SERVICING
Radium Engineering fuel filter elements have an extensive amount of surface area in order to extend service life. Keep in mind that high fuel demand engines will experience an increase in pressure drop faster as the contaminant load increases in the element. This means service intervals will be more frequent with higher powered engines.
For element media servicing, just the outlet cap is required to be removed.
