Radium Engineering Fuel Rail, Top Feed Conversion, Nissan RB25DET

PORTS AND FITINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

This fuel rail is for the Nissan RB25DET (non NEO) engine ONLY. This is commonly found in the R33 Skyline among others. For the RB25DET NEO fuel rail, go HERE.

Manufactured with a large 0.69" internal bore, the fuel rail can support all any engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed injectors, allowing the use of a wide variety of aftermarket fuel injectors available on the market.
This kit is compatible with E85.

The fuel rail has four 8AN ORB ports that can be used for fuel inlet, outlet or for plumbing option accessories. All unused ports must be plugged.

The rail is extruded and CNC machined from solid 6063 aluminum and black anodized for a high quality surface finish.

The green injector seats press into the intake manifold and provide a sealed base for the top feed fuel inejctors to sit on. These injector seats require fuel injectors with a 14mm lower O-ring (common size).

INCLUDED

-Black Anodized Aluminum Fuel Rail
-Insulating Spacers, Short (x3)
-Insulating Spacers, Tall (x3)
-Insulating Washers (x3)
-O-ring Sealed Injector Seats
-Stainless Steel Mounting Bolts, Short (x3)
-Stainless Steel Mounting Bolts, Tall (x3)

Fuel Injector Compatibility

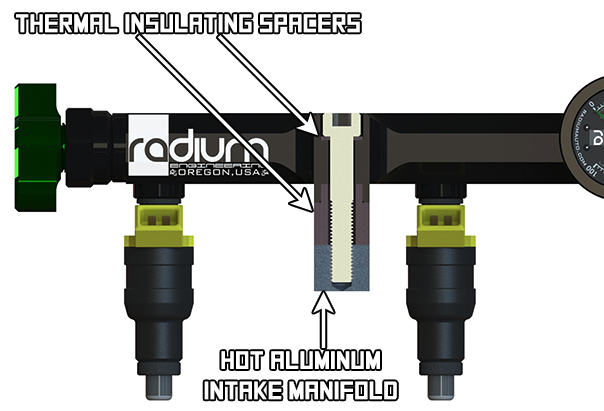

The kit includes 2 sets of spacers to suit multiple height injectors. The thermally insulating spacers offer excellent resistance to heat transfer.

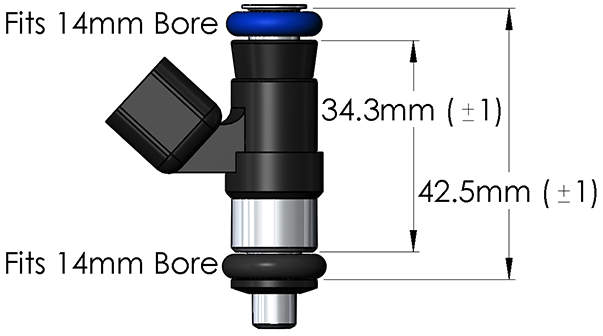

Use the tall spacers and longer mounting bolts to accomodate this size injector:

Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the tall spacers:

Injector Dynamics ID1050-XDS-48-14-14
Injector Dynamics ID1300-XDS-48-14-14
Injector Dynamics ID1700-XDS-48-14-14
Injector Dynamics ID2600-XDS-48-14-14

Use the shorter spacers and mounting bolts to accomodate this size injector:

Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the short spacers:

Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

NOTE: Fuel injectors are NOT included and must be purchased elsewhere.

To reuse the factory fuel pressure regulator, select part number 20-0303 (shown below).
